To calculate the true torque for the fastening application use this formula. Torque wrench adapters and conversion formula.
857122 Sturtevant Richmont Pdf Catalogs Technical
Torque wrench adapter formula. Length of adapter 2. Lbft foot poundslbin inch poundsnm newton meters step 2. Dial wrench using a 2 long crowfoot adapter. To recalculate your torque wrench when using the motion pro adapter use the extension formula included with. Enter fastener torque specification from workshop manual. Torque wrench adapter extended equations calculator.

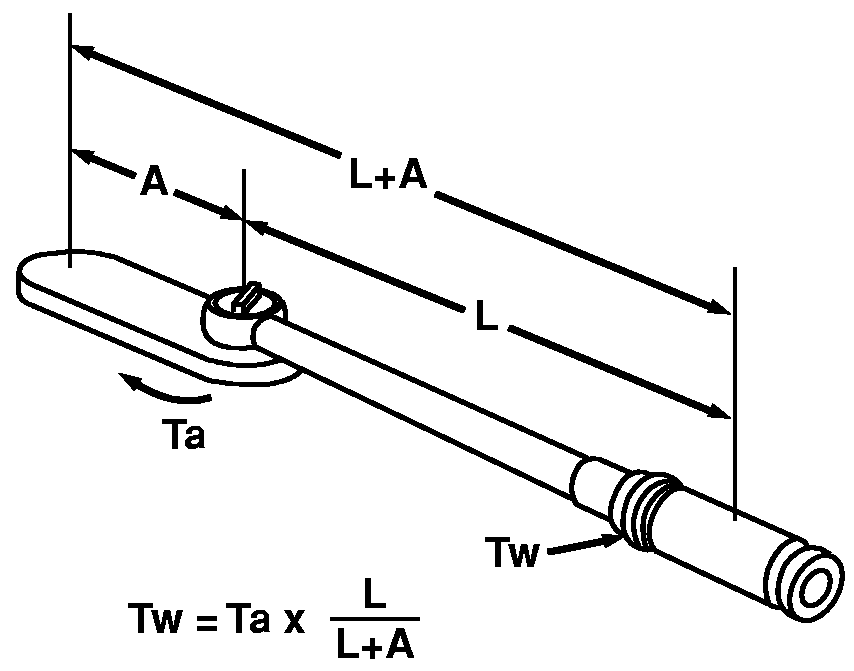

1 torque wrench adapters extensions are used to tighten screws and nuts to specific values that cannot be reached with a regular socket on the end of a torque wrench. Desired torque 250 ft. Setting torque wrench length x torque desired torque wrench length adapter extension length step 1. T target or actual torque required lb in y torque setting or reading to obtain desired torque t in lbs l distance between applied force and torque wrench drive center in e distance between torque wrench drive center and crows foot drive center in. The length of the torque adapter in this example is 3 inches. When using extension adapters and spanners the torque applied to the fastener is greater than that preset torque setting or the torque value displayed on the tool.
This reading will be lower than the desired torque. The torque setting on the wrench allowing for the added length of the adapter. Half moon wrench left. Enter length of torque wrench a instructions. L effective length. Measure from center of handle to center of drive.
Before using the torque adapter you must recalculate the torque specification listed in the engines service manual. Measure your torque wrench from center of adapter drive to where you will apply force center of hand location this is l. 15 degree wobble extension. Measure from center of torque wrench adapter drive to center of tool extension adapter this is e. This makes the dial or scale reading less than the actual torque applied to the screw or nut. Determine the adapter extension length or offset of fastener to torque wrench by measuring the distance between the following centers.
New setting tw. Torque wrench adapter formulas. Torque wrench adapter formulas. Half moon wrench right. Therefore the torque value set on the torque wrench will not be the actual torque that you apply to the fastener.
