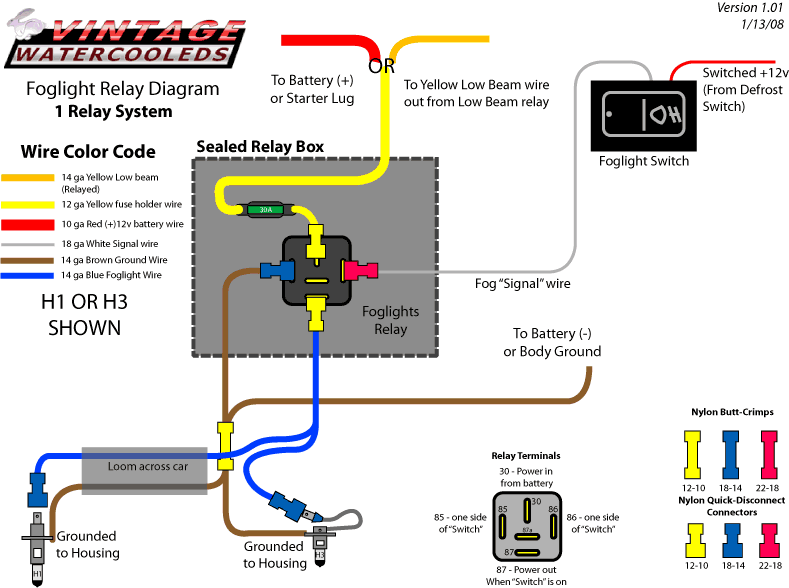

How to wire fog lights with a relay. Use as reference only. The lamps and relay harness are to be used only with 12 volt automotive. How to wire fog lights step 1. Strap them to the y shaped white power wire that runs through to the ignition inside the vehicle. Mount the fog lights as low as possible on the front of the vehicle. Use a short piece of 18 gauge wire with a solderless female spade.
This listing is features one set new relay wiring harness with onoff switch universal fit for led daytime running lights off road driving lights and led work lights. Splice a red wire from the headlight wire to the relay terminal 30 this line needs a 10 amp inline fuse so be sure and wire one in. It is meant to aid all the typical consumer in creating a correct system. If the relay fails it will disable the power to the fog lights and render them inoperable. 1 x relay switch control wiring harness. Fog light driving light daytime light.
The fog light relay is the switch that controls power to the fog lights and it is usually controlled either automatically by the computer or manually by the driver. Mount the circuit breaker and relay the signal stat 192 is easy to wire and has a mounting tab near the. With this manual you will be capable to see how each and every element ought to be linked and also the exact actions you ought to take in order to successfully complete a. The switch included gives more flexibility controlling the lights. Power 12v to the fogs lights passes through the normally closed contacts of the relay terminals 30 and 87a. Join the black wires to the matching black ground wires at the back of the fog lights connect them to the unpainted section of the vehicle frame.
The final terminal on the relay is numbered 87 this terminal will carry power to the fog lights. Wiring diagram comes with a number of easy to stick to wiring diagram instructions. Bridge the white power wires together with the corresponding wires from the fog lights. Use the following procedure.
