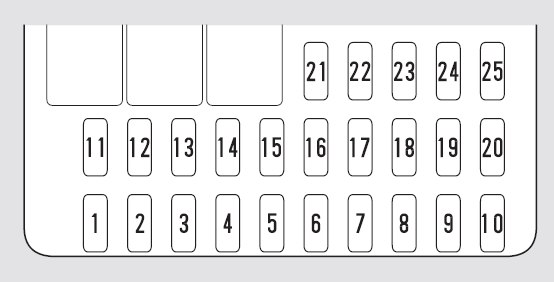

The interior fuse box is located under the dashboard on the drivers side. Determine from the chart or the diagram on the fuse box lid which fuse or fuses control that device.
2003 Honda Crv Fuse Box Diagram C3 Wiring Diagram
Honda crv fuse box. 2007 2008 2009 interior fuse box number ampere rating a circuits protected 1 75 power window relay 2 15 fuel pump 3 10 acg 4 75 absvsa 5 15 heated seats 6 20 front fog lights 7 not used 8 10 rear. The interior fuse box is underneath the steering columnto remove the fuse box lid pull it toward you and take the lid out of its hinges. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. Fuse box diagram pre 2009. Determine from the chart or the diagram on the fuse box lid which fuse or fuses control that device. Fuse box diagram fuse layout location and assignment of fuses and relays honda cr v mk3 2007 2008 2009 2010 2011.
Fuse box diagram location and assignment of electrical fuses for honda cr v 2002 2003 2004 2005 2006. Checking and replacing fuses if something electrical in your vehicle stops working check for a blown fuse first. Honda cr v 2007 2009 fuse box diagram year of production. Fuse layout honda cr v 2017 2019 cigar lighter power outlet fuses are the fuses 10 center console accessory power socket 29 front accessory power socket and fuse h cargo area accessory power socket if equipped in the instrument panel fuse box. The fuse label is attached under the steering column. The video above shows how to replace blown fuses in the interior fuse box of your 2014 honda cr v in addition to the fuse panel diagram location.
Fuse box diagram fuse layout location and assignment of fuses and relays honda cr v mk4 rm1 rm3 rm4 2012 2016. Checking and replacing fuses if something electrical in your vehicle stops working check for a blown fuse first. The video above shows how to replace blown fuses in the interior fuse box of your 2009 honda cr v in addition to the fuse panel diagram location. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out.
