Were specifically looking for the headlight relay. Our kit includes separate relays for the high and low beams as well as upgraded gxl wire to make.
Car Light Wiring Diagram Lupa Www Vmbso De
Headlight wiring diagram with relay. I have 12 volts on all three wires at the headlight bulb. Its fully insulated and contains up to 7. Headlight relay wiring diagram the above circuit is a way to use existing headlight wiring to control 2 relays that can be placed close to the lights. Low and high beams are in op but the flash to pass function works. After you have all the things and tools you will use now lets make a headlight wiring relay kit. Headlight relays to do or not to do.
The control for the relays can come from the existing headlight wires. When i hit flash to pass it grounds out on the regular headlight power wire but i still have 12 volts on my ground wire and high beam power supply. To answer that first we need to know what the problem is. This video is a detailed walkthrough of the american autowire headlight enhancement relay kit. If you buy 7x6 inch led headlights or 4x6 headlight and your car socket is not standard h4 to 3 pin adapter is a must. It isnt called out on the.
To ensure maximum power delivery there should not be any power loss in the circuit. Signs that represent the components in the circuit and also lines that stand for the connections between them. Power is conveyed from the power source batteryalternator to the lamps via the wires connectors and switches. The main power from the battery feeding the fuse and relays should be a nice large gauge wire as indicated. Ideally this is the case however in practice there are a few. Its shown for a four headlight system if you have a two headlight system on your car pretend the two inner high beam only headlights arent there and youll be fine.
Headlight relay wiring diagram new spec d headlight wiring diagram best 1982 yamaha maxim 750 wiring wiring diagram ignition coil archives joescablecar fresh just whats wiring diagram. Assortment of 12 volt relay wiring diagram. This caused the headlights not to work properly. A wiring diagram is a type of schematic which utilizes abstract pictorial symbols to reveal all the affiliations of parts in a system. 1measure the lenght of the wire you need from the stock wiring going to the left to right if your battery is in the right then your wiring should start in right headlamp going to left. This run to the battery is typically much longer then the run from the relay to the headlights so its gauge must be thicker.
Click on the image to enlarge and then save it to your computer by right. Any way to find a headlight wiring diagram for a 2009 hyundai accent. Again the thicker the wire the better. The main power from the battery feeding the fuse and relays should be a nice large gauge wire as indicated. The wire colors shown here represent a typical gm vehicle the. 2if your battery is in left headlamp start in left going to right headlamp.

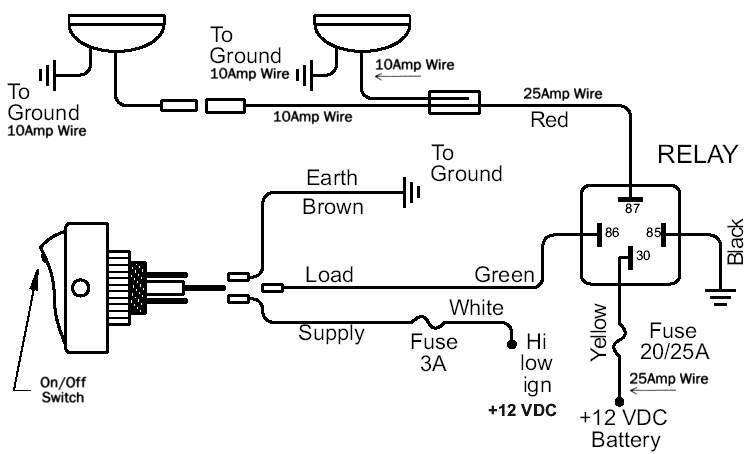

Headlight relay wiring diagram the above circuit is a way to use existing headlight wiring to control 2 relays that can be placed close to the lights. The answer is yes. Wiring representations are made up of two points. 12 volt relay wiring diagram bosch relay wiring diagram 5 pole fresh 5 pin relay wiring diagram inspirational pin relay wiring. 3now prepare your relay socket or. Headlight switch to control a power relay maximizes voltage to headlights maxxforce dt 9 10 2010 2013 engine wiring diagram page 2 of 3 86 pin connector 6341 53 pin connector 6340.
Wiring diagram for 2009 hyundai accent with a headlight issue. By allan brown every so often the question arises should i add relays to my headlight wiring. So use the right size wire. First study the 3 diagrams that you will use as your guide on how you want to built your wiring. The wiring diagram below shows what you need to end up wiring to make this work so if you know how to read a wiring diagram and feel like skipping ahead just go click on the thumbnail for the wiring diagram and check it out in full size full color glory.
