Chevrolet equinox 2010 2017 fuse layout chevrolet equinox 2018 2020 cigar lighter power outlet fuses in the chevrolet equinox are the fuse f37 cigarette lighter circuit breakers cb1 front auxiliary power outlet and cb2 auxiliary power outlet console in the instrument panel fuse box and fuse 21 rear auxiliary power outlet in the luggage compartment fuse box. The vehicle may not be equipped with all of the fuses relays and features shown.
Nissan Rogue Questions Where Is The Fuse For The Horn
2017 chevy equinox fuse box diagram. Engine compartment fuse block. To remove the fuse block cover squeeze the clips on the cover and lift it straight up. In case you used any of those methods and you are still getting this warning you most likely misspelled the timezone identifier. Interior fuse box location. Test component secure the cover and test component. It is not safe to rely on the systems timezone settingsyou are required to use the datetimezone setting or the datedefaulttimezoneset function.
See more on our website. 2010 2017 chevrolet equinox 2 fuse box diagram. For vehicles first sold in canada substitute the name general motors of canada company for chevrolet motor division wherever. Autos helped make these videos. The video above shows how to replace blown fuses in the interior fuse box of your 2017 chevrolet equinox in addition to the fuse panel diagram location. We are still working to obtain content for your car.

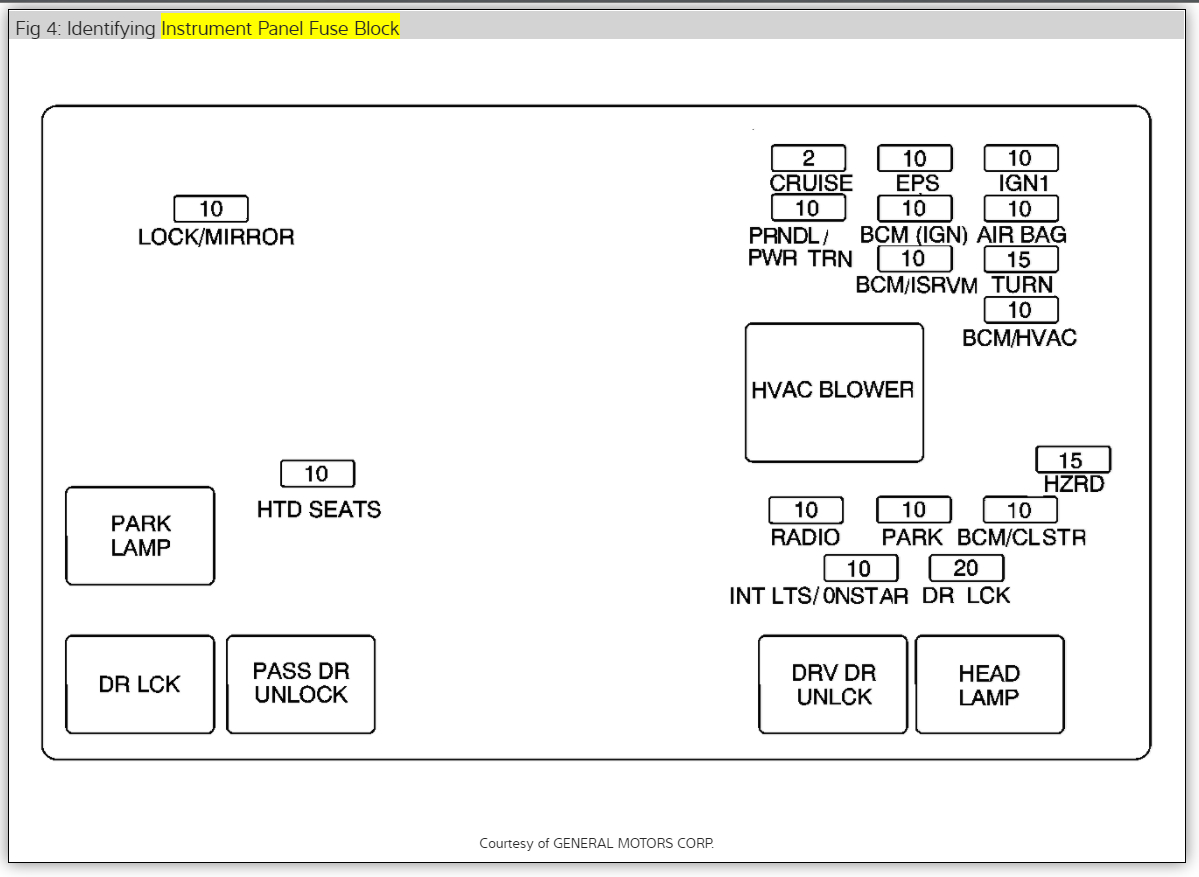

Remove cover locate interior fuse box and remove cover. Getting started prepare for the repair. Additional information on interior fuses. 2010 chevrolet equinox and gmc terrain fuse diagram underhood fuse box. Httpsfuse boxinfochevroletchevrolet equinox 2010 2017 fuses and relay fuse box diagram location and assignment of electrical. Instrument panel fuse block 1.
Locate bad fuse find the fuse that is tied to the bad component. Remove fuse take out the fuse in question and assess if blown. 1 cool fan i fuse f1ua fuse cooling fan low speed relay 30a laf 25a lf1 40a laf 2 cool fan ii fuse f2ua fuse 25a lf1 cooling fan high speed relay 3 rear defog fuse f3ua fuse 30a rear defogger grid 4 wndw rt fuse f4ua fuse 30a window switch passenger and window switch right rear 5 msm fuse f5ua fuse 40a seat memory control module ltz or slt 6 pwr seat lt. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. If your equinox is experiencing electrical problems you should always check the fuses first because they are relatively easy to check and cheap to. Fuse box diagram location and assignment of electrical fuses and relays for chevrolet chevy equinox 2010 2011 2012 2013 2014 2015 2016 2017.

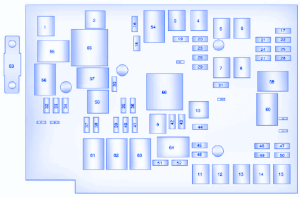

2010 chevrolet equinox underhood fuse box diagram. Power seat left. 9918169 2017 crc 32316 2 introduction introduction the names logos emblems slogans vehicle model names and vehicle body designs appearing in this manual including but not limited to gm the gm logo chevrolet the chevrolet emblem and equinox are trademarks andor service marks of general motors llc its subsidiaries affiliates or licensors.
