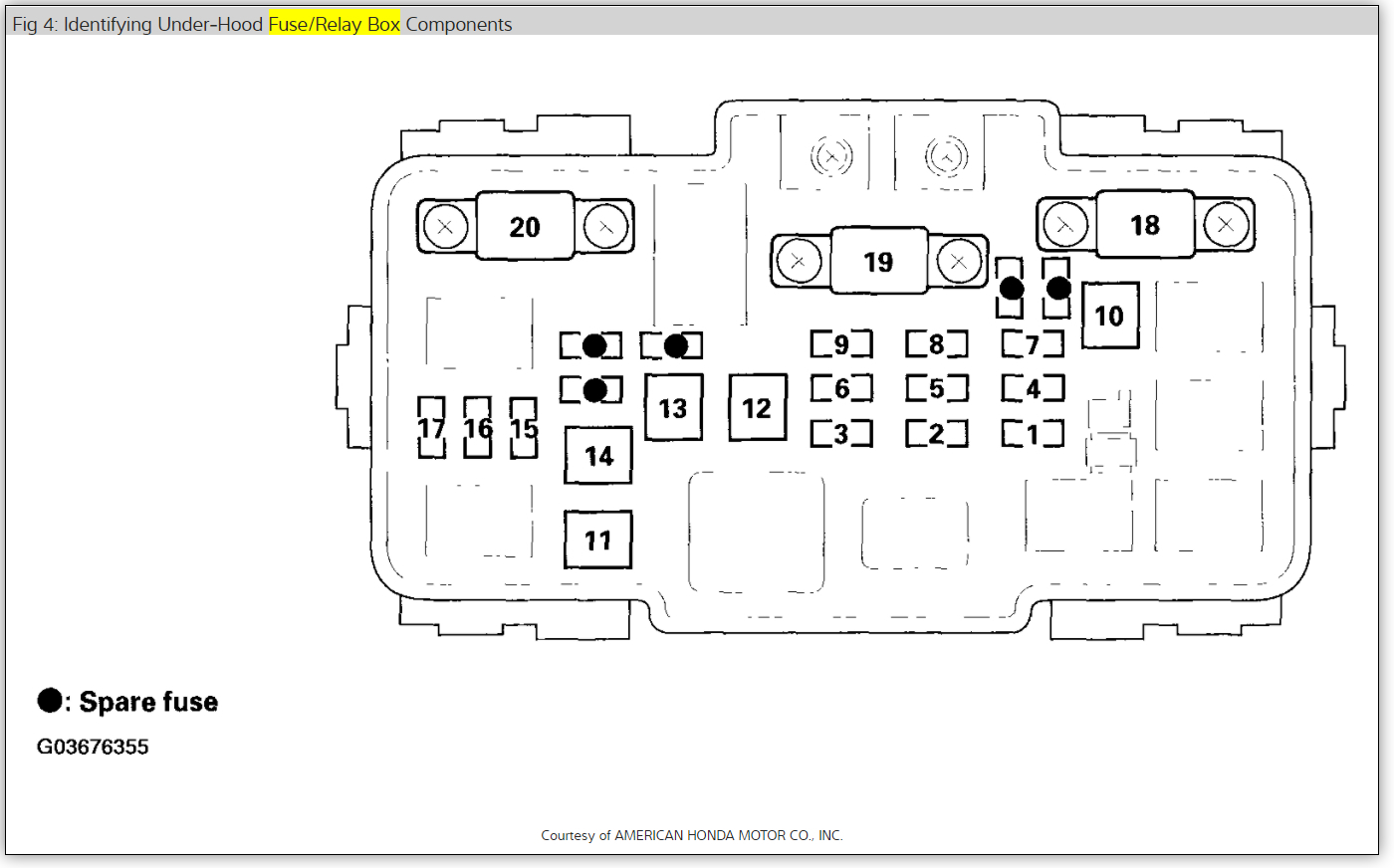

2003 honda crv brake light fuse location. My underhood fuse box did not match glvenus pic above didnt have the 2 fuses circled together. See more on our website. Answered by a verified mechanic for honda. Horn works answered by a verified mechanic for honda. Honda crv 2003 brake light fuse. Where is the brake light fuse for a 2004 honda cr v located.
2003 honda crv brake lights on both sides dont work center window brake light works tried new bulbs. The fuse is 15 75 amp marked small extr located under the dash panel. The interior fuse box is located under the dashboard on the drivers side. On my 2003 cr v the two braketail lights do not brighten when the brakes are applied. Cannot find which fuse it is in the owners manual. Table of contents fuse box location.
This will also kill the rear lights. This will allow much easier access to the fuse box. For a 2003 honda crv disconnect the horn fuse 7 located in the under hood fuse box. There should be a fuse puller and extra fuses located underneath the engine compartment fuse box. The upper center light does brighten when brakes are applied. Cant find a brake light fuse.

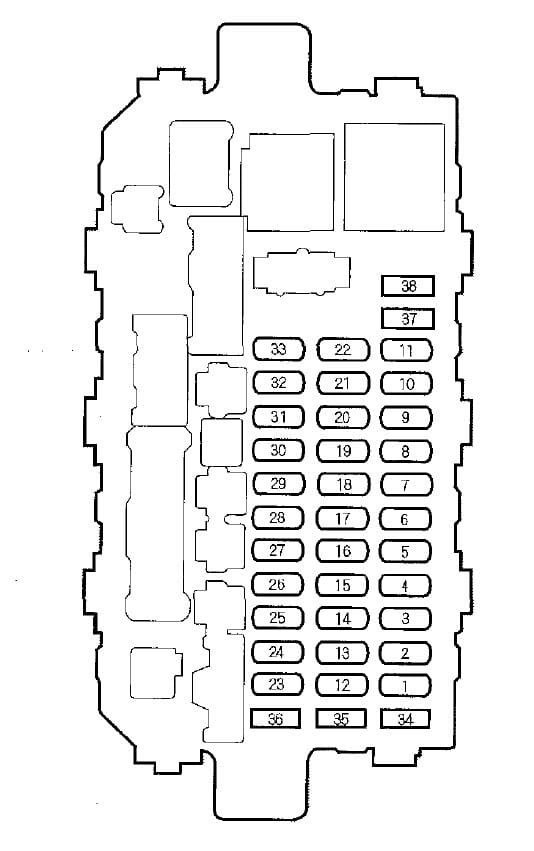

Cigar lighter power outlet fuses in the honda cr v are the fuses 2 rear accessory power socket and 18 front accessory power socket in the instrument panel fuse box. With the other hand slide the brake light switch bumper up the brake pedal feeling around for the hole where it will go. Fuse box diagram pre 2009. Fuse nofuse nameampscomponent or circuit protected1condenser fan20aac condenser fan relay ac compressor clutch relay2small light15ataillight relay3interior light15afront ceiling light ignition key switchkey light rear ceiling light rear wiper control unit spotlights4cooling fan20aradiator fan relay5hazard15ahazard warning switch trailer lighting connector 03 046fi ecu15apgm fi main. We use cookies to give you the best possible experience on our website. First remove the fuse diagram cover and then pull off the panel where the change pocket is.
The under hood fuse box is located in th eengine compartment on the drivers side. The flat portion of the switch bumper should be facing the rear of the vehicle. Both refer to a brake light fuse. When you get the flanged part of the switch bumper into the hole push it hard so it cant easily come out. The fuse label is attached under the steering column.
