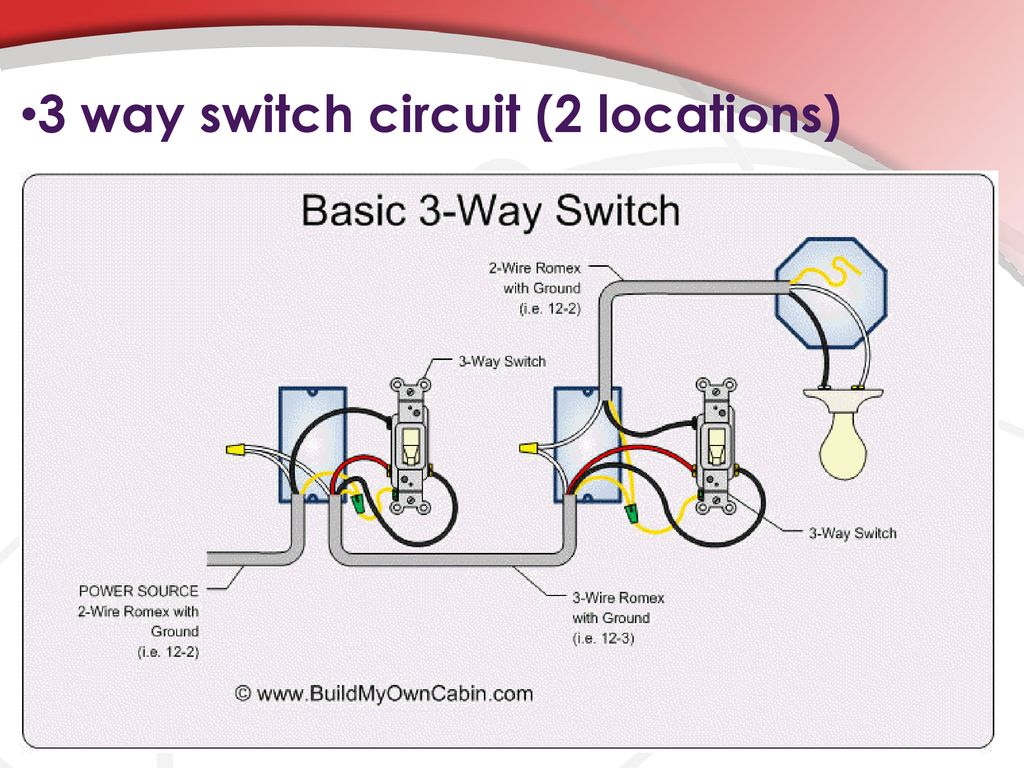

The answer to this is something so ludicrous that you just wouldnt do it but there is in fact a solution. The following is the simple schematic of a three wire 2 way switch wiring.
How To Wire A 3 Way Light Switch Family Handyman
Wiring 3 way switch with 12 2. As you can see in the schematic diagram of 2 way switch circuit below the common of both the switches are short circuited. A common either 120v power or the wire to the light fixture. 2 traveler wires connect to each 3 way. Does the l3 and l4 go into com. Thank you for the advice. Email me at some114 at gmail.
The only items not visible in the image are the switch blades shown as purple in the. From the schematic you can easily visualize how the wiring. While wiring a 3 way switch is more involved than something simple like installing an electrical box for an electric fireplace the task can be simple enough if you follow along with these instructions. Yes a 3 way switch can be wired using a marked white wire not a neutral provided your 3 way switch has the following. The white wire is unused. The l2 terminals of both the switches are connected to one terminal of the light bulb while the other terminal of the light bulb is connected to neutral of the ac power supply.
1 to save money since 143 cost more per foot. Using 2 wire travelers is a common practice by construction electricians for 2 reasons. You run a 14 2 cable from the lightbulb to one switch and connect the black to the bulb on one side and the common connector of the switch. The l1 terminals of both the switches are connected to line or phase or live of the ac supply. This method is commonly used now days as it is efficient than the two wire control system. Pin1 of both the switches are connected with the phase or live wire and pin2 of both the switches.
This is the new method to make a 2 way switching connection as it is slightly different from the two wire control method. In houses switches should always be mounted vertically up and down. Re wiring 3 way light switch. The new switch just has l1 l2 loop and com. This is a basic 3 way switch wiring method. With a pair of 3 way switches either can make or break the connection that completes the circuit to the light.
Re wiring 3 way light switch. Log in or sign up to leave a comment log in. Wiring a 3 way light switch. Since power one hot and one neutral is at both ends the hot at one end is connected to the common while capping off the unused neutral and at the other end the neutral from the power feed is connected to the lights neutral while capping off the unused hot. How to connect 2 way switch wiring using three wire control. It is the best and easiest method of wiring 3 way switches.
Is this what you have. The switches are shown in a horizontal position to make it easier to visualize. So far the closest thing ive had is to wire the switches in series but the circuit in parallel. The downside to this isif the light is off it can still be hot on both sides of the circuit. Does anyone know where to put each wire in the new switch. Ive drawn a bunch of schematics and ive gotten the closes to answering it.
This can easily be solved using two 3 way switches one black screw and 2 copper screws but this problem can only be solved using two 2 way switches power and the bulb. Finally connect neutral and hot to the remaining poles. You can wire a three way switch with 14 2. Hi guyscould really do with some advice for replacing a 3 way single light switch. You can observe in the schematic that both the com terminals are connected together. The old switch had four wires going into l1 l2 l3 and l4.
Wiring a 3 way light switch is certainly more complicated than that of the more common single pole switch but you can figure it out if you follow our 3 way switch wiring diagram. 3 way switch 2 3 way wire which has black white and red coated wires and of course a copper ground wire. Run another cable from the bulb to the other switch also connecting the black to the common on one side and the bulb on the other. Posted by 2 hours ago. Description power at both ends switch leg at one with a 2 wire 142 or 122 used as travelers.
